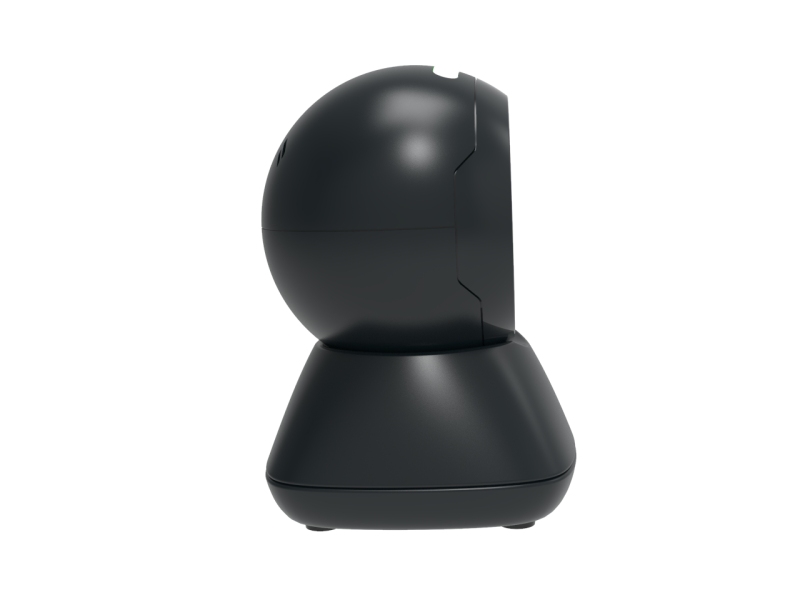

Retail Barcode reader 1D 2D Code Scanner
1D 2D Code Reader
Directly reading the barcodes on mobile phones and computer screens
Applicable to all kinds of new retail POS systems and ticket checking terminals
Rotatable structure designed to meet more application scenarios
- RS3000
- China
- ODM acceptable
- 5-7 business days / 150 units
- USB/RS232
- 12 months
Details
Platform Barcode Reader ▏RS3000
●Reading the barcodes on mobile phones and computer screens
●Applicable to all kinds of new retail POS systems and ticket checking terminals
●Designed rotatable to meet more application scenarios
| Physical Parameters | Performance Parameters | ||
| Dimensions | 137.40mm x 99.80mm x 96.50mm | Sensor Pixels | CMOS 640 (H) x 480 (V) |
| Weight | 262.5g | Light Source | （Aim）Blue LED；（Lighting）Red LED |
| Operating Voltage | 5V | Field of View | 39°(H) X 29°(V) |
| Starting Current | 315mA | Roll/ Pitch/ Yaw | 360°/ ±65°/ ±65° |
| Standby Current | 235mA | Print Contrast | 20% Minimum Reflection Difference |
| Working Current | 320mA | Interface | USB |
| Reading Accuracy | ≥4mil | ||
| User Environment | Decoding Range | ||
| Operating Temperature | -20°C~60°C | Code39 (5mil) | 0-7cm |
| Storage Temperature | -30℃~70℃ | Code39 (13mil) | 0-17cm |
| Humidity | 5%～95%（relative humidity, non-condensing） | QR (20mil) | 0-11cm |
| Drop Endurance | Withstand a drop of 1.5m ( 5 inches ) | Alipay Payment QR (3*3) | 1-30cm |
| Ambient Light Immunity | 0-100,000 Lux | ||
Decoding Capability
1D Barcode: Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、 Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、 Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post.
2D Barcode: DOT Code, Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode、Aztec、HANXIN.
Default Starting Code: Codabar、Code39、Interleaved2of5、NEC2of5、Code93、Code128、GS1-128、UPCA、UPC-E0、EAN/JAN-13、EAN/JAN-8、GS1-DataBar、PDF417、QR、DM、Aztec
